Embedded Air caster system

Designed to integrate seamlessly into machinery, production lines, or tooling, the embedded air caster system provides a reliable way to move heavy loads smoothly and accurately. By using polyurethane air casters and innovative air control, this system ensures optimal performance.

Request a quote

Capacity

1,000 kg to 60,000 kg / 2,200 lbs to 132,000 lbs

Maximum working pressure

2 barg / 30 psi

What is an Embedded Air caster system?

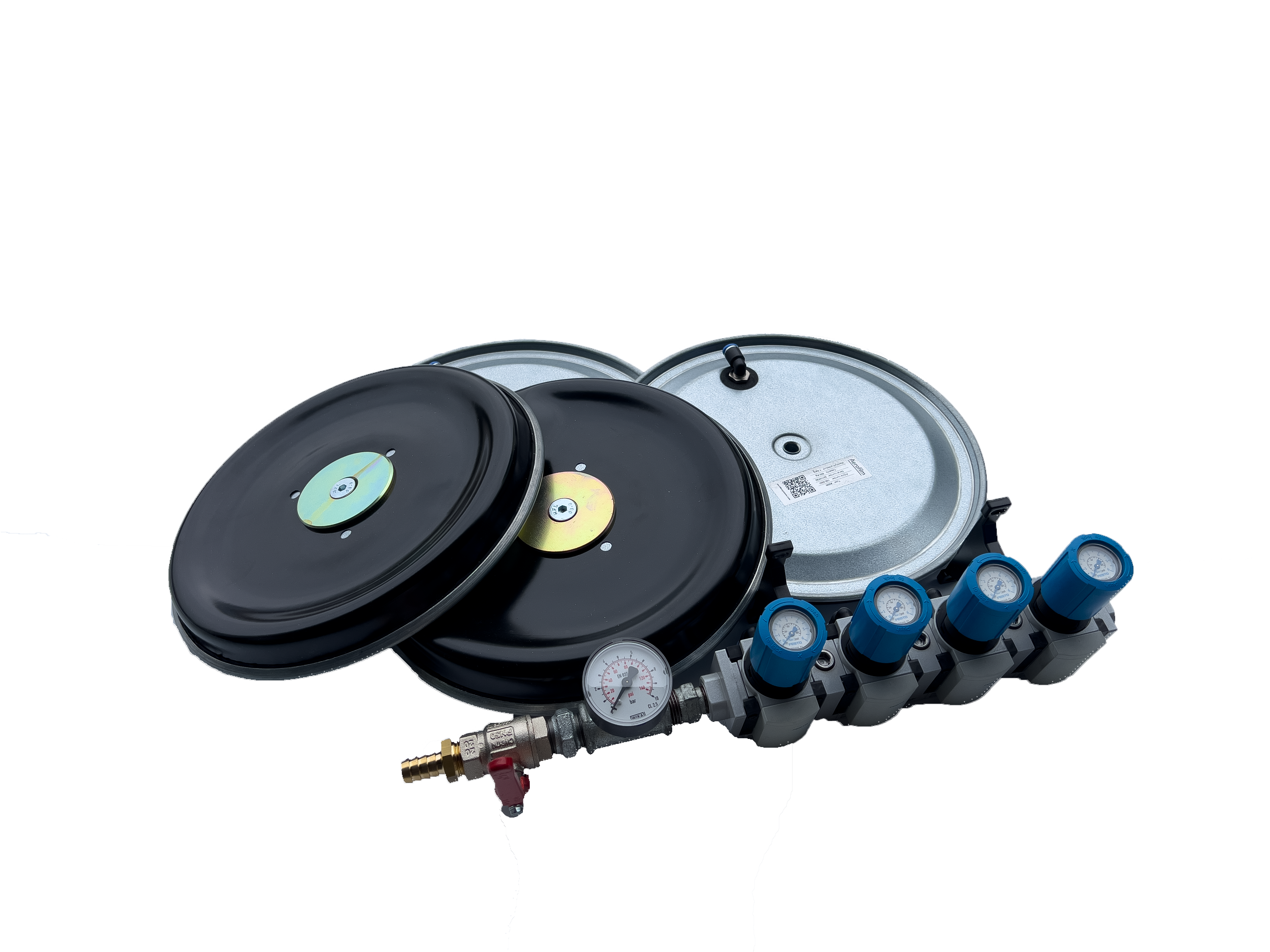

An embedded air caster system consists of multiple components that work together seamlessly, allowing heavy loads to be moved efficiently and safely. The system includes the following components:

Air casters. Equipped with 4 or 6 polyurethane air casters with universal air connectors, allowing the use of custom air hoses.

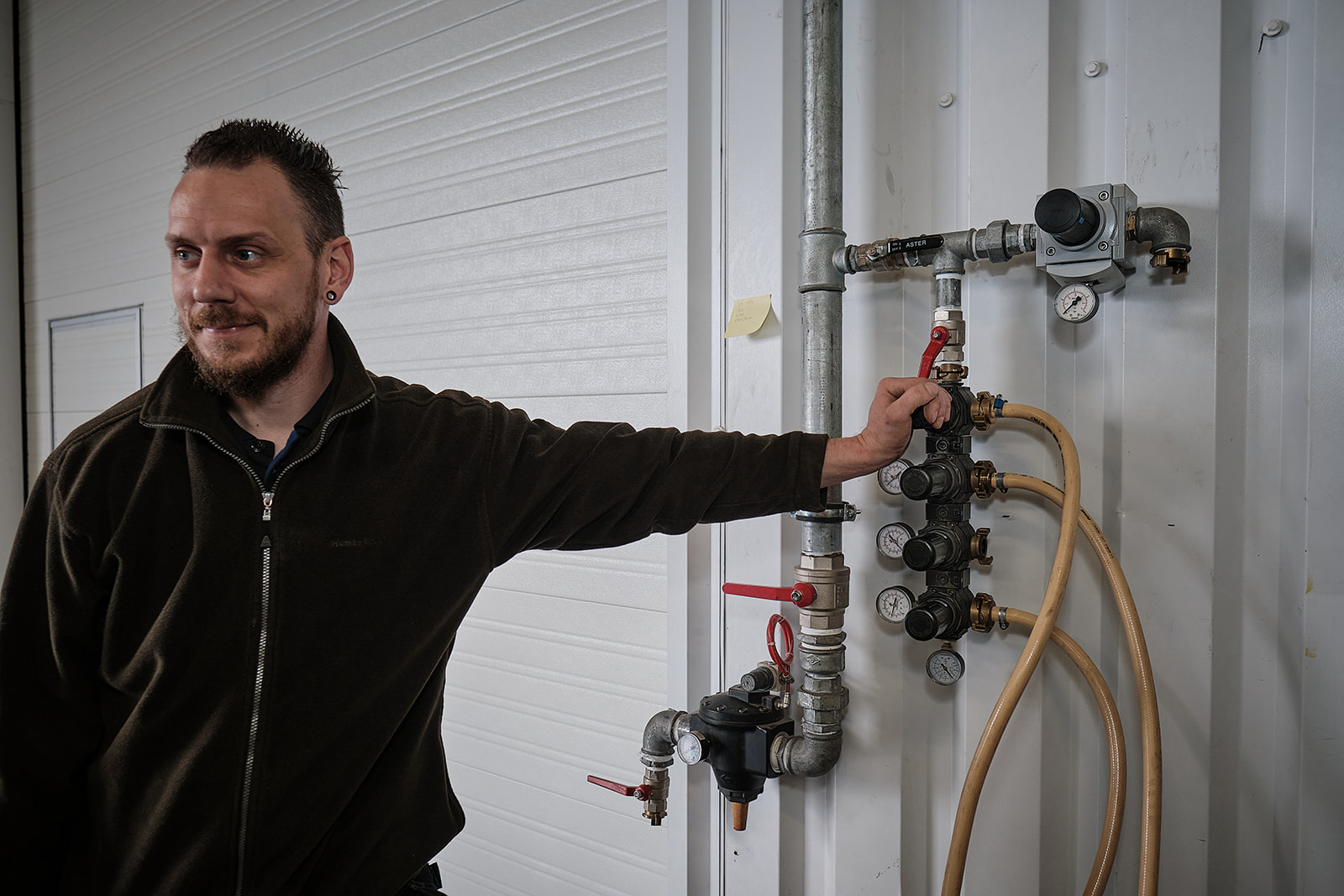

Embedded air control unit. Essential for controlling airflow and optimizing air consumption. Universal air couplings are also used on the control unit, making it compatible with custom air hoses.

How it works

The system operates using compressed air supplied to polyurethane air casters via an air control unit. These air casters create a thin layer of air between the load and the surface, virtually eliminating friction. As a result, even heavy loads—up to several tens of tons—can be moved with minimal effort.

Air control plays a crucial role in this process. Precisely matching air pressure and capacity ensures:

Optimal system operation.
Efficient air consumption.

The system is typically integrated into the fixed infrastructure of a machine or production line. Our engineers provide full design and implementation support, ensuring the system fits perfectly into your specific setup.

Advantages

Cost efficiency. The simple construction and use of polyurethane air casters result in lower initial costs and minimal maintenance.
Durability. Polyurethane’s wear resistance ensures long-term performance, even in intensive applications.
Ideal for sensitive environments, such as cleanrooms. An optional stainless steel version is available.
Reliability. Consistent performance under heavy loads makes this system a reliable choice for critical processes.
Integration options. Flexible design configurations allow easy integration into existing infrastructures, such as machinery and production lines.

Engineering Support for Customization

The integration of an embedded air caster system is backed by extensive engineering expertise. Every project requires customization, and our experts collaborate with you to design the ideal solution for your application. We guide you through the entire process, including:

Selecting the right air casters.
Optimizing air control.
Designing a custom solution.

From concept to realization, the system is developed to function optimally both technically and operationally. This collaboration ensures smooth implementation and maximum efficiency in your business processes.

Applications

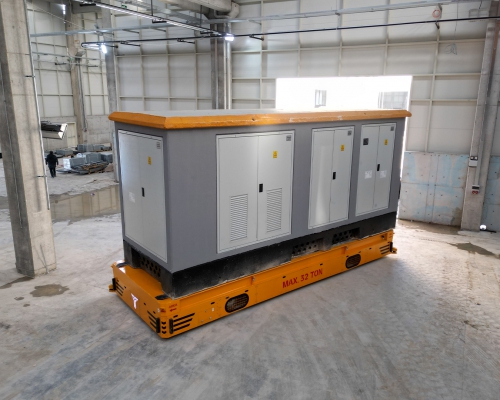

Standard systems can be tailored to your specific capacity requirements. Various options enable the movement of loads up to several tens of tons. As a result, our embedded air caster systems are widely used in:

Machine building. For transporting heavy components within machines.
Production lines. Seamless integration for the internal transport of heavy loads.
Tooling. Ensures precision and reliability for tool handling.
Cleanrooms. Thanks to the optional stainless steel design, ideal for sensitive environments.
